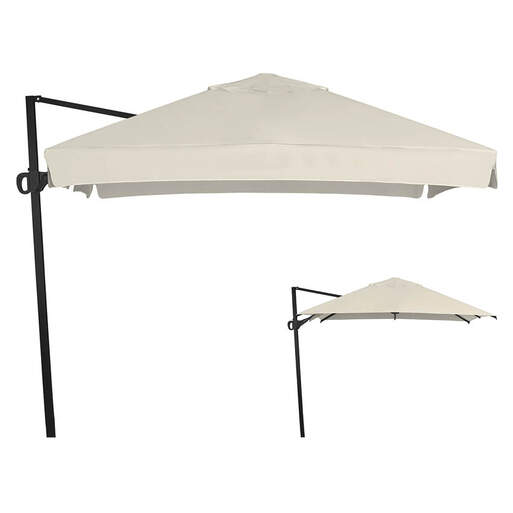

Classic Comfort Square - Hanging - side leg parasol with crank opening #9640
< Back to the cataloguefrom € 673,20*unprinted for an order quantity of 20 units

Detailed images![Cantilever parasol with crank opening system Cantilever parasol with crank opening system]()
![Cantilever parasol with crank opening system, tilted Cantilever parasol with crank opening system, tilted]()
![Cantilever parasol with crank opening system, tilted Cantilever parasol with crank opening system, tilted]()
![Cantilever parasol frame Cantilever parasol frame]()
![Cantilever parasol with crank opening system Cantilever parasol with crank opening system]()
![Sun Square RIO - cantilever parasol Sun Square RIO - cantilever parasol]()
![Cantilever parasol for pool Cantilever parasol for pool]()
![Cantilever parasol with valance Cantilever parasol with valance]()








Colours![desired colour desired colour]()
![white white]()
![black black]()
![nature - 1807002 nature - 1807002]()
![beige - 1807003 beige - 1807003]()
![taupe - 1807004 taupe - 1807004]()
![red- 1807005 red- 1807005]()
![light burgundy - 1807006 light burgundy - 1807006]()
![dark burgundy - 1807007 dark burgundy - 1807007]()
![green - 1807008 green - 1807008]()
![light grey - 1807009 light grey - 1807009]()
![dark grey - 1807010 dark grey - 1807010]()
![blue - 1807011 blue - 1807011]()
![dark blue - 1807012 dark blue - 1807012]()
Data
Number of panels | 4 |
Opening system | Crank |
Shape | Square |
Cover | Polyester, approx. 195-225 g/m2 |
Properties of cover | water and dirt repellent, replaceable |
Water resistancy - stock material | ca. 815 mm |
Water column height - digital printing | ca. 285 mm |
Water column height - hand screen printing | ca. 815 mm |
Water column height - flat screen printing | ca. 285 mm |
Wind hood | with valve |
Pole | Aluminium, gray RAL 9022 |
Frame | Aluminium, gray RAL 9022 |
Ribs | 30,0 x 18,0 mm |
Wind resistance | up to 28 km/h |
Origin | Made in Europe |
Lightfastness | # 4-6 / 6-8 von 8 |
Article no. | 9640 |
Packaging unit | 1 |
Minimum order quantity | 1 |
Delivery time | 4 - 6 weeks |
DescriptionModern and Flexible Cantilever Parasol for Maximum Table Clearance and Freedom of Movement.
The "Classic Comfort Square - Hanging" is a modern and practical cantilever parasol. The non-standard position of the mast offers the advantage of plenty of table clearance under the canopy. You can freely and comfortably arrange furniture and equipment as you wish and move freely under the canopy without the pole and umbrella stand getting in the way! The angle of the canopy is also adjustable, meaning you can adapt to the weather conditions. And it gets even better: the integrated rotator allows the cantilever parasol to rotate freely around its own axis! The cantilever parasol also impresses when it comes to opening and closing thanks to its crank opening system, which can be operated with little effort.
- Cantilever parasol in a modern design
- Side mast for maximum table clearance
- Opens conveniently thanks to the crank
- Adjust the angle of the canopy to the sun as you wish
- Possibility of the umbrella rotating fully around its own axis
- Anthracite aluminium frame
- Available without valance
Variant | Pole outer diameter (mm) | Pole inside diameter (mm) | Weight (kg) | Dimension A (cm) | Dimension B (cm) | Dimension C (cm) | Dimension D (cm) | Valance (cm) | Struts |
3,00 x 3,00 m | 60 x 60 | 54 x 54 | 26 | 42 | 240 | 260 | 214 | 25 | 8 |
Packaging sizes
Variant | Quantity (pcs.) | Weight (kg) | Length (cm) | Width (cm) | Height (cm) |
3,00 x 3,00 m | 1 | 35 | 280 | 40 | 50 |
Accessories
Free shipping!
Main features![Printable Printable]()
![Waterproof 2 - parasol Waterproof 2 - parasol]()
![Wide range of colours Wide range of colours]()
![High-quality polyester cover High-quality polyester cover]()
![Quality for catering Quality for catering]()
![Especially large table clearance Especially large table clearance]()
![Any colour on request Any colour on request]()
![Better UV protection Better UV protection]()
![Lightfastness Lightfastness]()
![Made in EU Made in EU]()
Advertising mounting![Parasol square - full-surface printing Parasol square - full-surface printing]()
![Parasol square, 4 panels - panel 1 Parasol square, 4 panels - panel 1]()
![Parasol square, 4 panels - panel 2 Parasol square, 4 panels - panel 2]()
![Parasol square, 4 panels - panel 3 Parasol square, 4 panels - panel 3]()
![Parasol square, 4 panels - panel 4 Parasol square, 4 panels - panel 4]()
![Parasol square, 4 panels - volant 1 Parasol square, 4 panels - volant 1]()
![Parasol square, 4 panels - volant 2 Parasol square, 4 panels - volant 2]()
![Parasol square, 4 panels - volant 3 Parasol square, 4 panels - volant 3]()
![Parasol square, 4 panels - volant 4 Parasol square, 4 panels - volant 4]()
